Samstag, 27. Dezember 2014

Up-cycling headphones

I needed new bluetooth headphones as my old Nokias started to fall apart.

Seeing old analog wireless headphones in the free-for-all bin in the Munich Maker Lab I looked around for a easy solution to enable them with bluetooth.

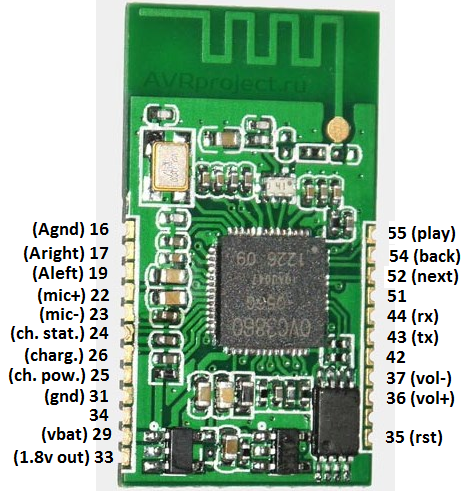

I found the OVC3860 module (5$) which integrates an bluetooth module with HiFi and headset profiles, an headphone amp, lipo loader and even has some pins for easily attachable buttons.

I've put the module in one side and an old 370mAh lipo with an separate charger in the other.

Features added:
- 3 buttons on the side to control Play/Pause, Next, Previous
- NFC sticker to setup up the bluetooth connection
- Audio port usable as a line out (with volume turn low) or speaker in (with audio module off)

Total cost of the project: around 10€

Donnerstag, 25. Dezember 2014

New insights in my mobile

I have a Sony Xperia Z which I was very happy with until recently.

First, an Firmware update destroyed the battery runtime, then another one fixed this, but the phone was laggy as hell THEN the lens permanently fogged up from the inside with dust (this phone is waterproof, how did that happen??).

I was close to buy the new MotoX, but decided to follow the Self-Repair Manifesto and 'own' this phone. First I installed Cyanogen Mod to make it fast and stable again, then I fixed the lens fogging. I had concerns about that as everything is glued together but it was really easy. You only need a hot air gun and a suction cup.

Anyway, I tried how easy it is to remove the black coating of the back glass... you see the result below. =)

The mainboard was covered by the NFC antenna, so I moved that over the battery.
